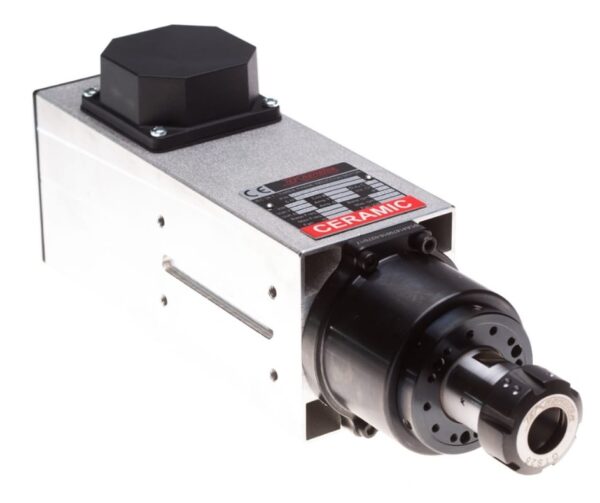

6.0 kW Teknomotor Air Cooled Square Spindle Motor

CNC Spindle Motor 6.0 kW, 24000 RPM, 380 V Air Cooled Square (TEKNOMOTOR)

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp
Add to wishlist
Categories: , ,

CNC Spindle Motor 6.0 kW, 18000 RPM, 380 V Air Cooled Square, Teknomotor Spindle

  • Suitable for Wood and CNC Routing and PCB Manufacturing
  • Available with Ceramic Bearings
  • Compact Layout in only 350 mm in length
  • Different Configurations due to Different Power sizes Available
  • CNC Air Cooled Square Teknomotor Spindle Motor

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]



Description

Specification

Power 6.0 KW(TEKNOMOTOR)
Speed 18000-24000 RPM
Voltage 220 V/380 V
Current 21 A
Frequency 300 Hz – 400 Hz
Torque 2.78 Nm
Pole 2 Pole
Joint of nose ER32(2mm to 20mm)
Bearing Type Ceramic Bearing
kg 16 kg



Application

  • CNC Router mfg
  • CNC Pattern making mc
  • Foam Cutting mc
  • Wood Carving ind

Advantage

  • Optimum Balancing
  • Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
  • Greenery ANTIPOLLUTION
  • Electromagnetic pollution control mechanisms
  • Self Cooling Machinery
  • Efficient Design
