Description

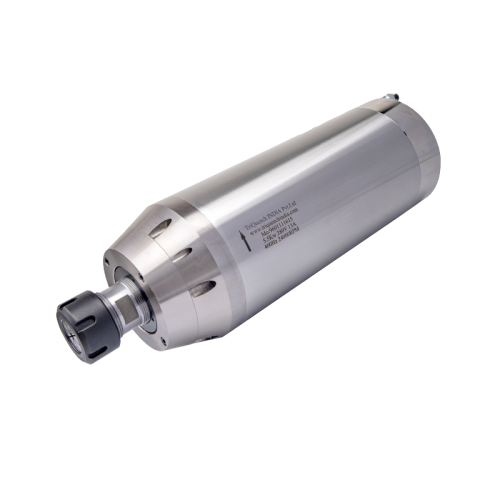

CNC Spindle Motor 5.5 kW,380 V,24000 RPM Water Cooled
TriQuench India Pvt Ltd
Need Help? Contact Us via WhatsApp
CNC Spindle Motor 5.5 kW,380 V,24000 RPM Water Cooled
- Suitable for stone carving / metal engraving
- Efficient cooling and low noise level
- High Quality Ceramic Bearings
- Accuracy is less than 3 Micron
[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]
Additional information
| Weight | 22 kg |
|---|---|
| Power Kw |
Specification
| Model number | W55240R380M1 |
| Speed | 24000 RPM |
| Voltage | 380 V |
| Current | 13.0 A |
| Frequency | 400 Hz |
| Torque | 2.91 N.m |
| Pole | 2 |
| Joint of nose | ER25(1mm to 16mm) |
| Bearing Type | 2 X 7007 P4 2 X 7005 P4 |
| Weight | 22 Kg |
Application
- Stone carving
- Metal engraving
Advantages
- Cost Efficient
- Low Noise and Cooling efficient
