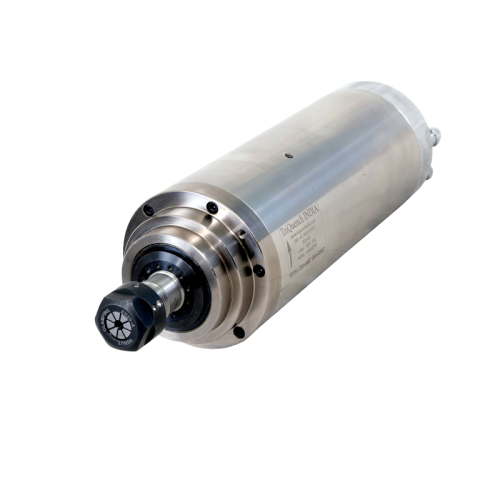

CNC Spindle Motor 4.5 kW,380 V,24000 RPM Water Cooled

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp

CNC Spindle Motor 4.5 kW,380 V,24000 RPM Water Cooled

  • Suitable for CNC Marble Cutting.
  • CNC Stone & Wood Carving Machine
  • CNC Soft metal Cutting  ( Alu. Brass, Copper , Plastic) Machine.
  • Efficient cooling and low noise level
  • High Quality Ceramic Bearings
  • Accuracy is less than 3 Micron

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]







Description






Additional information

Weight 9 kg
Power  Kw

Specification

Model number W45240R380M1
Speed 24000 RPM
Voltage 380 V
Current 12.0 A
Frequency 400 Hz
Torque 1.45 N.m
Pole 2
Joint of nose ER20(1mm to 13mm)
Bearing Type 2 X 7005 P4 2 X 7003 P4
Weight 9 Kg

Application

  • CNC Marble Cutting Machine
  • CNC Stone & wood Carving Machine
  • CNC soft metal ( Alu. Brass, Copper , Plastic) Cutting Machine

Advantages

  • Cost Efficient
  • Low Noise and Cooling efficient
