Additional information
| Weight | 7.5 kg |
|---|---|
| Power Kw |

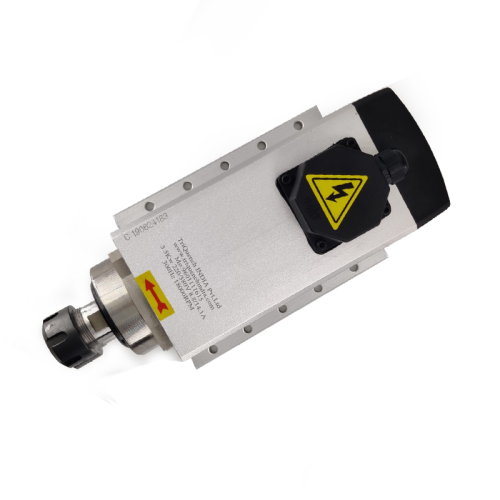

CNC Spindle Motor 3.5 kW,18000 RPM,220/380 V ER20 Aircooled square
TriQuench India Pvt Ltd
Need Help? Contact Us via WhatsApp
CNC Spindle Motor 3.5 kW,18000 RPM,220/380 V ER20 Aircooled square
- Suitable for wood and CNC Routing and PCB Manufacturing
- Available with ceramic bearings
- Compact layout in only 350 mm in length
- Different configurations due to different power sizes available
[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]
Specification
| Model Number | A35180S2238M120 |
| Power | 3.5 kW |
| Speed | 18000 RPM |
| Voltage | 220 V / 380 V |
| Current | 12 A / 7.2 A |
| Frequency | 300 Hz |
| Torque | 1.68 Nm |
| Pole | 2 Pole |
| Joint of nose | ER20 (1mm to 13mm) |
| Bearing Type | 2 X 7005 P4Â Â Â Â Â Â 2 X 7002 P4 |
| kg | 7.5 kg |
Application
- CNC Wood Carving Machine
Advantages
- Optimum Balancing
- Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
- Greenery ANTIPOLLUTI
- Electromagnetic pollution control mechanisms
- Self Cooling Machinery
- Efficient Design
