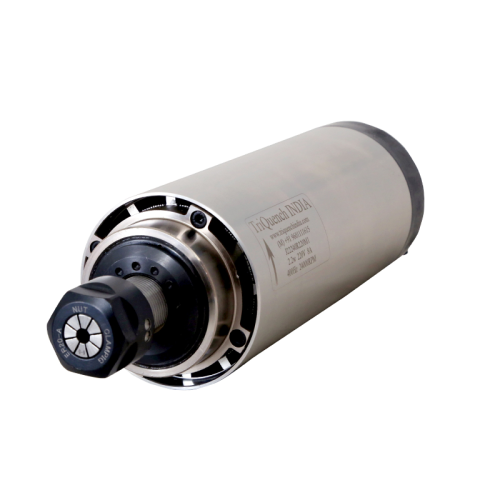

CNC Spindle Motor 2.2 kW,24000 RPM,220 V,Air cooled Round

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp

CNC Spindle Motor 2.2 kW,24000 RPM,220 V,Air cooled Round

  • Suitable for wood carving and PCB Drilling Applications, Aluminum processing and Bangle Making Applications
  • Available with ceramic bearings
  • Compact layout through length in only 350 mm
  • Different configurations due to different power sizes available
  • CNC Air Cooled Spindle

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]



Additional information

Weight 5 kg
Power  Kw

Specification

Model number A22240R220M1
Power 2.2 kW
Speed 24000 RPM
Voltage 220 V
Current 8.0 A
Frequency 400 Hz
Torque 0.68 Nm
Pole 2 pole
Joint of nose ER20 (1mm to 13mm)
Bearing Type 2 X 7005 P4            2 X 7002 P4
kg 5 kg



Application

  • CNC Wood carving Machine
  • CNC PCB Drilling Machine
  • CNC Bangle Making Machine

Advantages

  • Optimum Balancing
  • Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
  • Greenery ANTIPOLLUTION
  • Electromagnetic pollution control mechanisms
  • Self Cooling Machinery
  • Efficient Design
