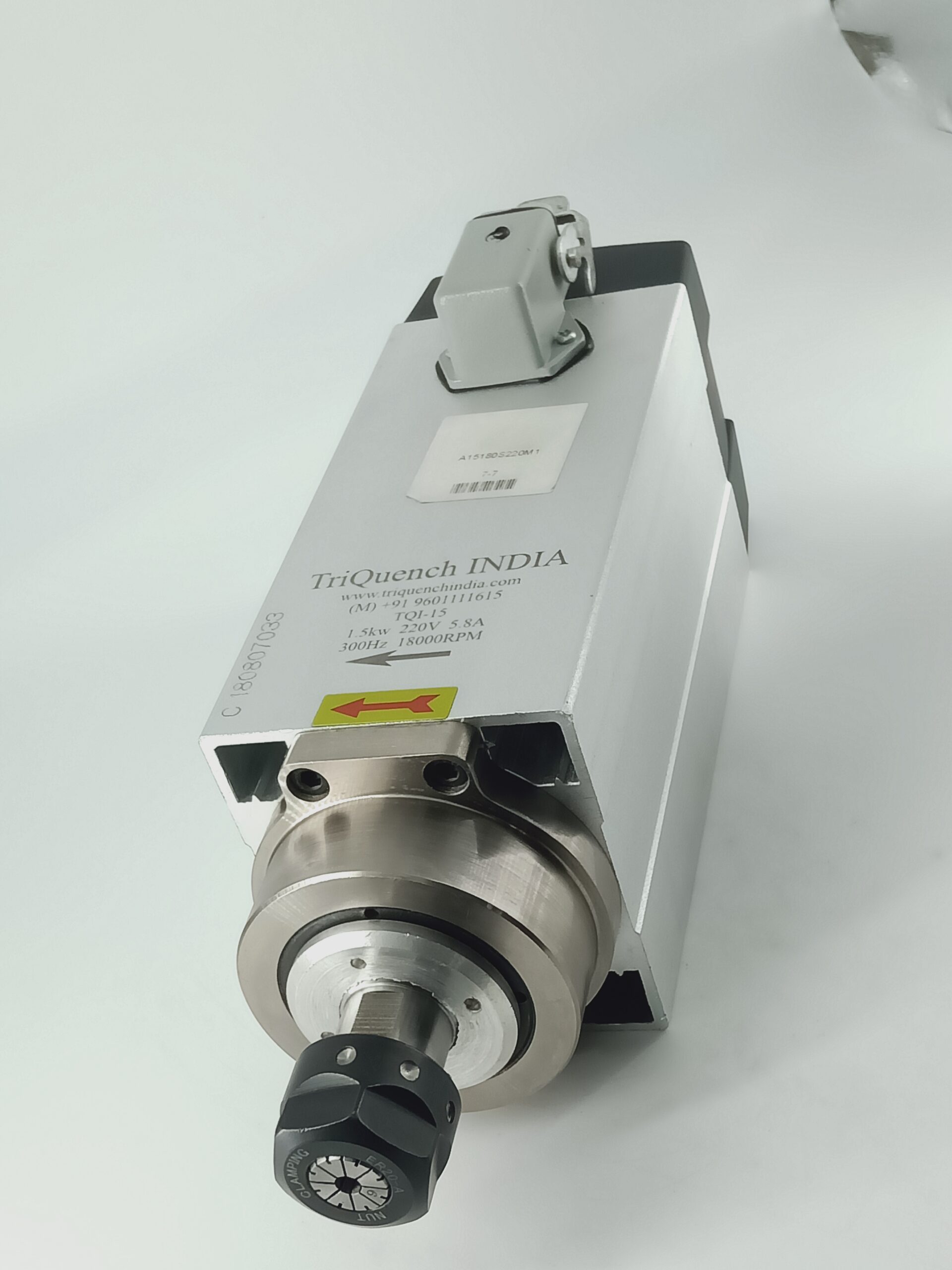

CNC Spindle Motor 1.5 kW,18000 RPM,220 V Air cooled Square

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp

CNC Spindle Motor 1.5 kW,18000 RPM,220 V Air cooled Square

  • Suitable for wood and CNC Routing and PCB Manufacturing
  • Available with ceramic bearings
  • Compact layout in only 350 mm in length
  • Different configurations due to different power sizes available
  • CNC Air Cooled Spindle Motor 1.5kW

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]



Specification

Power 1.5 kW
Speed 18000 RPM
Voltage 220 V
Current 5.8 A
Frequency 300 Hz
Torque 0.91 Nm
Pole 2 pole
Joint of nose ER20(1mm to 13mm)
Bearing Type 2 X 7005 P4           2 X 7002 P4
kg 7 kg

Application

  • CNC router Machine
  • CNC Brush Industries
  • CNC PCB Routing Machine
  • CNC Bangle Making Machine
  • CNC Auto Mobile Industry for debbering

Advantage

  • Optimum Balancing
  • Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
  • Greenery ANTIPOLLUTION
  • Electromagnetic pollution control mechanisms
  • Self Cooling Machinery
  • Efficient Design
