Additional information
| Weight | 4 kg |
|---|---|
| Power Kw |

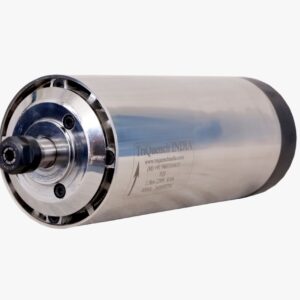

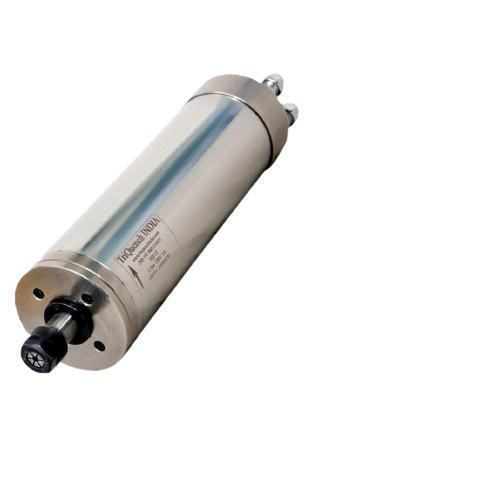

CNC Spindle Motor 1.2 kW,220 V,40000 RPM Water Cooled
TriQuench India Pvt Ltd
Need Help? Contact Us via WhatsApp
CNC Spindle Motor 1.2 kW,220 V,40000 RPM Water Cooled
- Suitable for CNC Bangle Making/PCB Drilling
- Efficient cooling and low noise level
- High Quality Ceramic Bearings
- Accuracy is less than 3 Micron
- CNC Spindle Motors 1.2kW
[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]
Specification
| Model number | L12600R220M1 |
| Speed | 40000 RPM |
| Voltage | 220 V |
| Current | 5.0 A |
| Frequency | 666 Hz |
| Torque | 0.42 N.m |
| Pole | 2 |
| Joint of nose | ER11 (0.5mm to 7mm) |
| Bearing Type | 2 X 7002 P4 2 X 7000 P4 |
| Weight | 4 Kg |
Application
- CNC Bangle Making
- PCB Drilling
Advantages
- Cost Efficient
- Low Noise and Cooling efficient
