CNC Spindle Motor 0.8 kW,20000 RPM,220/380 V Aircooled Square

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp

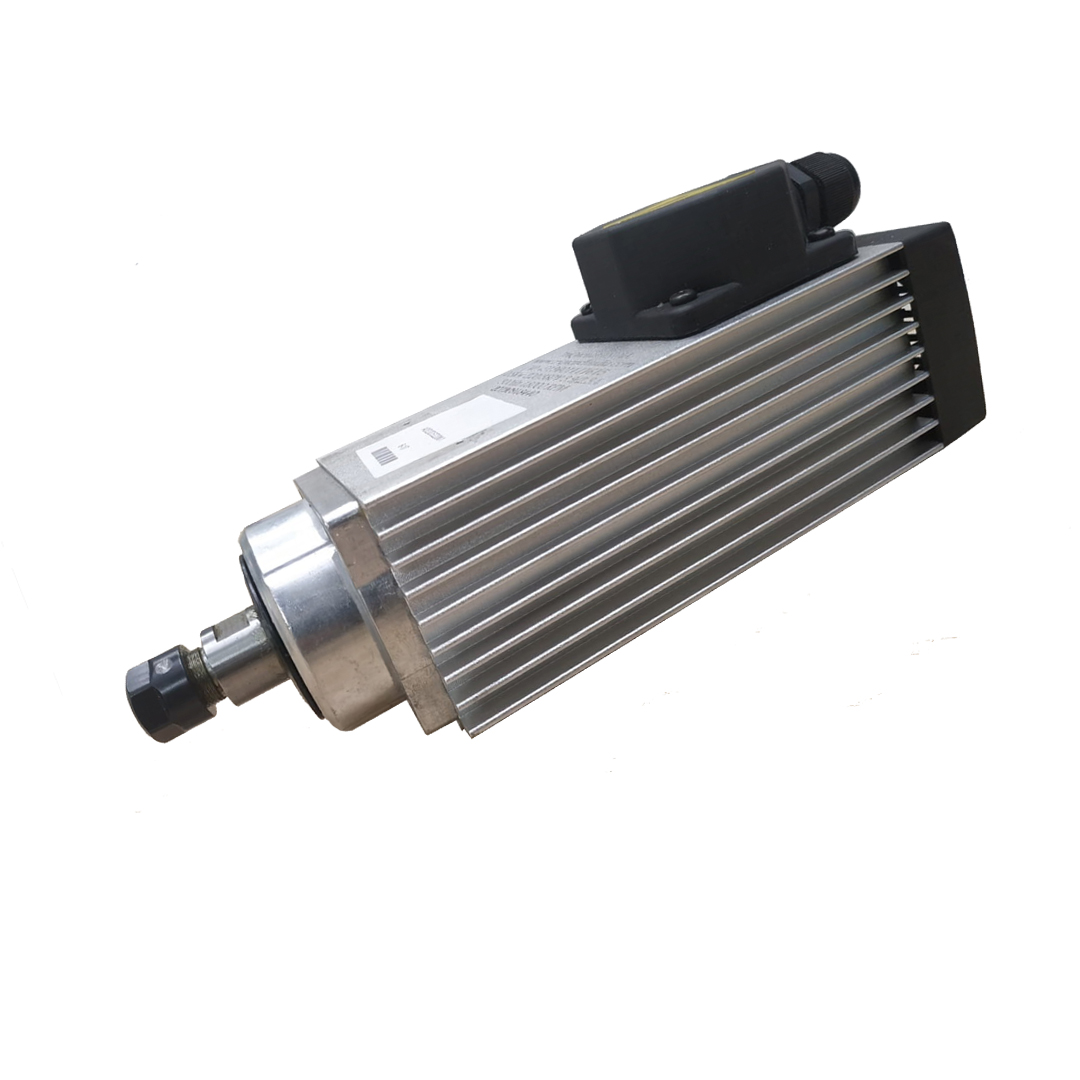

CNC Spindle Motor 0.8 kW,20000 RPM,220/380 V Aircooled Square

  • Suitable for wood and CNC Routing and PCB Manufacturing
  • Available with ceramic bearings
  • Compact layout in only 350 mm in length
  • Different configurations due to different power sizes available
  • CNC Spindle Air cooled Square

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″]

[button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]








Specification

Power 0.8 kW
Speed 20000 RPM
Voltage 220 V/380 V
Current 3.7 A/2.2 A
Frequency 333 Hz
Torque 0.31 Nm
Pole  2 pole
Joint of nose ER11 (0.5mm to 7mm)
Bearing Type 2 X 7005 P4             2 X 7002 P4
kg 4 kg

Application

  • CNC router Machine
  • CNC Brush Industries
  • CNC PCB Routing Machine
  • CNC Bangle Making Machine

Advantage

  • Optimum Balancing
  • Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
  • Greenery ANTIPOLLUTION
  • Electromagnetic pollution control mechanisms
  • Self Cooling Machinery
  • Efficient Design
