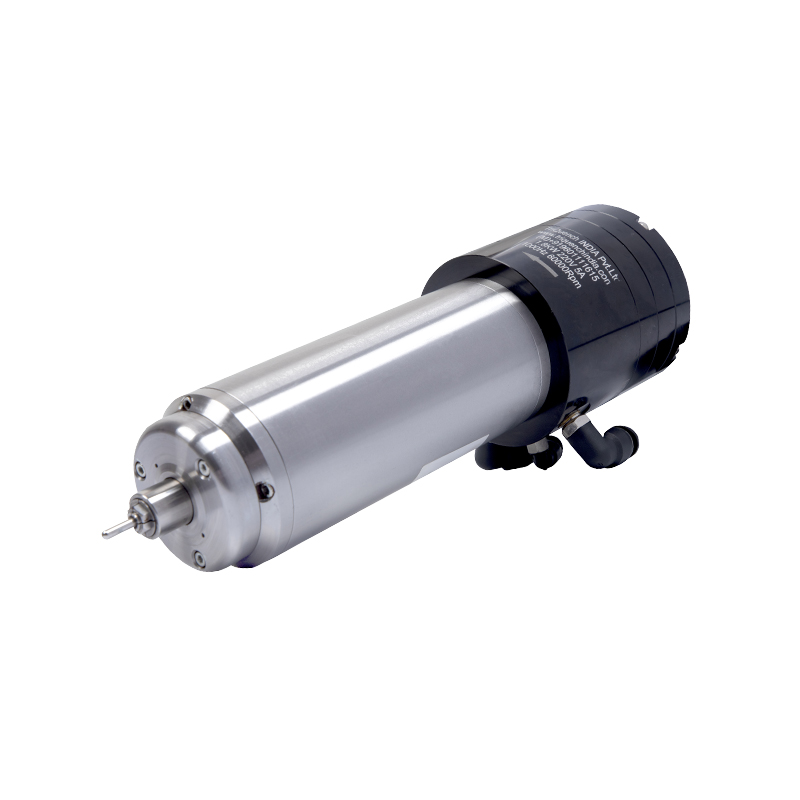

CNC ATC Spindle Motor 1.8 kW,60000 RPM,220 V
TriQuench India Pvt Ltd
Need Help? Contact Us via WhatsApp
CNC ATC Spindle Motor 1.8 kW,60000 RPM,220 V
- Suitable for machining aluminium, plastic and light alloys
- Greater Stability even at Higher RPMs (Even at 60000 rpm)
- Tool Changing facility
- Cycle time reduction
- CNC Water Cooled ATC Spindle Motor
[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]
Specification
| Model number | O18600R220M1 |
| Power | 1.8 kW |
| Speed | 60000 RPM |
| Voltage | 220 V |
| Current | 6.5 A |
| Frequency | 1000 Hz |
| Torque | 0.28 Nm |
| Pole | 2 pole |
| Tool Holding | 6mm |
| kg | 5 kg |
Application
- CNC PCB Drilling Machine
- CNC Denture Machine
- CNC Mobile tempered Glass engraving Machine
- CNC Jewellery Making Machine
Advantages
- STIFFNESS AND PRECISION
- Set of 4 ceramic ball bearings on the spindle gives maximum strength and stability
- ENHANCED LIFESPAN
- Variable bearings pre-load system with springs to allow the spindle to machine without overheating
- CONFIGURABILITY
- Different configurations give flexibility towards selections as per machinary needed”
