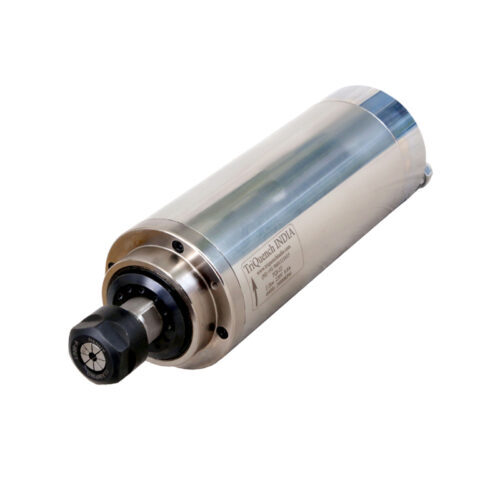

CNC Spindle Motor 2.2 kW,220 V,24000 RPM Water Cooled

wws TriQuench India Pvt Ltd Need Help? Contact Us via WhatsApp

CNC Spindle Motor 2.2 kW,220 V,24000 RPM Water Cooled

  • Suitable for lock & Key Mfg / soft metal carving / wood carving / robotics arm
  • Efficient cooling and low noise level
  • High Quality Ceramic Bearings
  • Accuracy is less than 3 Micron

[button button_text=”SEND INQURY NOW” button_size=”big” button_style=”default” button_icon=”fa fa-mail” button_align=”” button_link=”” link_open=”_self” href_title=”” id=”” class=”sg-popup-id-3032″][button button_text=”Download Product Catalogue” button_size=”big” button_style=”default” button_icon=”fa fa-download” button_align=”” button_link=”https://www.triquenchindia.com/wp-content/uploads/2020/09/Company-Brochure-1.pdf” link_open=”_self” href_title=”” id=”” class=””]






Specification

Power 2.2 kW
Speed 24000 RPM
Voltage 220V
Current 8.0 A
Frequency 400 Hz
Torque 0.87 Nm
Pole 2 pole
Joint of nose ER20(1mm to 13mm)
Bearing Type 2 X 7005 P4             2 X 7002 P4
kg 5.4 kg

Application

  • CNC lock & Key Machine
  • CNC soft metal carving Machine
  • CNC wood carving Machine
  • CNC robotics arm

Advantage

  • Cost Efficient
  • Low Noise and Cooling efficient
